Description
Easy 1-2-3 Series Radiators Systems are just what they sound like! Proform will build the whole system with shroud and fan so it s ready to go right out of the box! This is the best and easiest way to get a high-quality cooling system that doesn t have the DIY look, but rather a sleek show car look.
Just thread the thermostat probe into the tank, wire up the adjustable controller, and you ll be driving down the street nice and cool in no time at all. This system includes a single-pass, all-aluminum radiator; low profile shroud; 12-volt electric fan; and an adjustable thermostat controller.
Features:
- 123 Series Radiator System Univ GM 26 Inch Core Bracket w/ Fans LS Conv Manual Transmission
- Completely Assembled!
- Integrated Radiator/Shroud/Fan System
- All Aluminum Radiator and Shroud
- High Performance 12v Electric Fan
- Thread-in Adjustable Thermostat Included

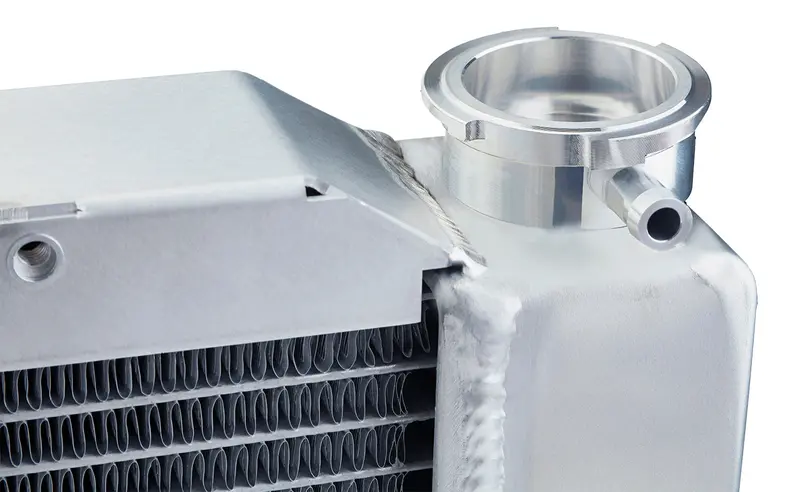

- Beautifully Welded Tanks
- Billet Aluminum Filler Neck
- Billet Aluminum Radiator Cap Included
- High-Capacity Overflow Tube
- Core Thickness (in): 2.4
- Core Width (in): 26
- Electric Fan(s) Included: Yes
- Fan CFM: 2400
- Fan Diameter: 12 Inch
- Finish: Natural
- Height (in): 18
- Inlet Diameter (in): 1.5
- Inlet Location: Driver Side
- Max Recommended Horsepower: 800
- Mounting Style: Universal
- Outlet Diameter (in): 1.75
- Outlet Location: Passenger Side
- Overall Width (in): 31.1 Inch
- Series: 1-2-3
- Shroud Included: Yes
- Transmission Type: Manual
- Voltage Compatibility: 12
Specifications:
| brand_logo | https://www.asapnetwork.org/sites/default/files/brands/icons/icon_4.jpg |
| Cap Color | Silver |
| Color | Silver |
| color_l | Silver |
| Condition | NEW |
| Core Thickness (in) | 2.4 |
| Core Width (in) | 26 |
| Description_ABR | Radiator |
| Description_ASC | 123 Series Radiator System; Universal; GM; 26″ Core; Bracket & Dual Fans; LS Conv; Manual Trans |
| Description_DEF | Engine Cooling Fan Shroud |
| Description_DES | 123 Series Radiator System; Univ; GM; 26″ Core; Brkt w/ Fans; LS Conv; Man Trans |
| Description_EXT | 123 Series Radiator System; Universal; GM; 26″ Core; Bracket & Dual Fans; LS Conv; Manual Trans |
| Description_INV | 123 System GM LS; 26″ Core; 2x Fan Brc. |
| Description_LAB | 123 Series Radiator System; Universal; GM; 26″ Core; Bracket & Dual Fans; LS Con |
| Description_MKT | Easy 1-2-3 Series Radiators Systems are just what they sound like! Proform will build the whole system with bracket and fans so it s ready to go right out of the box! This is the best and easiest way to get a high-quality cooling system that doesn t have the DIY look, but rather a sleek show car look. Just thread the thermostat probe into the tank, wire up the adjustable controller, and you ll be driving down the street nice and cool in no time at all. This system includes a LS Conversion single-pass, all-aluminum radiator; low-profile fan bracket; two 12-volt electric fans; and an adjustable thermostat controller. |
| Description_SHO | 1-2-3 Radiator |
| Diameter | 12.0 Inch |
| Fan CFM | 2400 |
| finish | Natural |
| finish_l | Natural |
| height | 22.25 |
| Height (in) | 18 |
| Inlet Diameter (in) | 1.5 |
| last_update | 2021-06-28 05:41:52 |
| length | 32.25 |
| LTL | N |
| Max Recommended Horsepower | 800 |
| Mounting Style | Universal – Conversion |
| Outlet Diameter (in) | 1.5 |
| Outlet Location | Passenger Side |
| Overall Width (in) | 31.1 inch |
| Series | 1-2-3 |
| sold_as | Each |
| Thickness | 2.4 Inch |
| Transmission Type | Manual |
| Voltage Compatibility | 12 |
| weight | 25.8 |
| width | 8.25 |
