Description

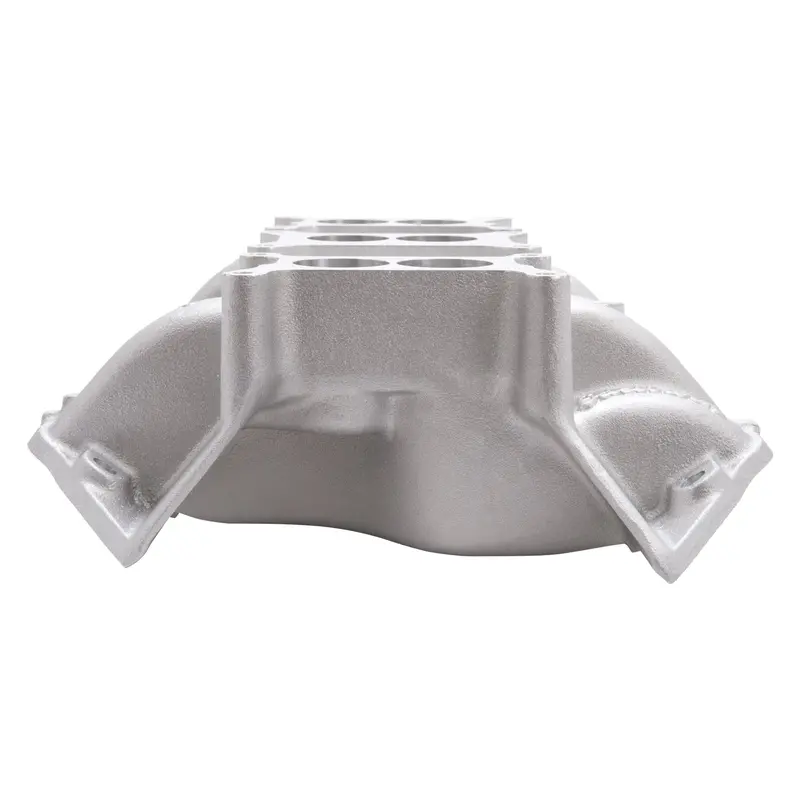

Edelbrock part #2475 CH-6B Chrysler 6-pack intake manifold is designed for 440 c.i.d. Chrysler engines with 3×2-bbl. carbs, also fits 413 and 426 Wedge. #2475 is stock replacement/street legal part for 440 V8’s with OEM 3×2-bbl. carbs; 1968-71. This manifold was original equipment on Chrysler 440 Six-Pack engines, Chrysler #P4529056. Will not fit 1962-64 Max Wedge heads. The Edelbrock CH-6B Chrysler 6-pack intake manifold is machined for the OEM 3×2-bbl 4-bolt carburetors.
Installation Instructions
Installation Instructions
Specifications:
| Basic Operating RPM Range | 2500-6500 |
| Center Maximum Height | 5.250 |
| CNC Ported | No |
| Cylinder Head Type | Standard |
| Description_ABR | Intake Mnfld |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock CH-6B Chrysler 6-Pack Intake Manifold for Chrysler 413-426-440 Big-Block V8 is Designed for “RB” (Wedge) Engines with 3 x 2-barrel Carburetors. Will not fit 1962-1964 Max-Wedge Cylinder Heads. Accepts 3x OEM 2-bbl Carbs. Non-EGR |
| Description_EXT | Edelbrock CH-6B Chrysler 6-Pack Intake Manifold for Chrysler 413-426-440 Big-Block V8 is Designed for RB (Wedge) Engines with 3 x 2-barrel Carburetors. Will not fit 1962-1964 Max-Wedge Cylinder Heads. Accepts 3x OEM 2-bbl Carbs. Non-EGR |
| Description_FAB | Designed for 2500 to 6500 RPM Performance |
| Description_FAB | Famous 6-Pack Intake |
| Description_FAB | Manifold Has Balanced 180+ Firing Order |
| Description_FAB | Match with Other Dual-Quad Items for Total Package |
| Description_FAB | OEM For Factory Six-Pack Engines |
| Description_FAB | Offers Excellent Performance Potential |
| Description_FAB | Smooth and Consistent Part-Throttle Power |
| Description_FAB | Stock Replacement Part |
| Description_INV | Chrysler 6 Pack 413-440 Intake Manifold |
| Description_KEY | 2475; Chrysler; Edelbrock; Intake Manifold; Intake; Manifold; Dual-Plane; Performer; Satin |
| Description_LAB | Edelbrock CH-6B Six-Pack Intake Manifold for Chrysler RB Series Engines |
| Description_MKT | 1968-71. This manifold was original equipment on Chrysler 440 Six-Pack engines, Chrysler #P4529056. Will not fit 1962-64 Max Wedge heads. The Edelbrock CH-6B Chrysler 6-pack intake manifold is machined for the OEM 3×2-bbl 4-bolt carburetors. |
| Description_MKT | Edelbrock part #2475 CH-6B Chrysler 6-pack intake manifold is designed for 440 c.i.d. Chrysler engines with 3×2-bbl. carbs, also fits 413 and 426 Wedge. #2475 is stock replacement/street legal part for 440 V8’s with OEM 3×2-bbl. carbs |
| Description_MKT | Edelbrock part #2475 CH-6B Chrysler 6-pack intake manifold is designed for 440 c.i.d. Chrysler engines with 3×2-bbl. carbs, also fits 413 and 426 Wedge. #2475 is stock replacement/street legal part for 440 V8’s with OEM 3×2-bbl. carbs; 1968-71. This manifold was original equipment on Chrysler 440 Six-Pack engines, Chrysler #P4529056. Will not fit 1962-64 Max Wedge heads. The Edelbrock CH-6B Chrysler 6-pack intake manifold is machined for the OEM 3×2-bbl 4-bolt carburetors. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 10in.} |
| Description_TRA | Carb pad height: 5.25″ |
| Description_TRA | Carb recommendations: OEM 3×2-Bbls |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height: A-4.875″, B-5.63″ measured to engine block |
| Description_TRA | Port exit dimensions: 1.10″ x 2.12″ |
| Description_TRA | Recommended intake gasket: #7225 |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Recommended intake gasket: # 7225 • Manifold height: A-4.875in.; B-5.63in. measured to engine block • Carb pad height: 5.25in. • Carb recommendations: OEM 3×2-Bbls • Port exit dimensions: 1.10in. x 2.12in. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | No |
| Emission | Without EGR |
| Engine Make/Size | Mopar 413-440 |
| finish | Satin |
| Flange Type | 2-Barrel 4-Bolt |
| Front Maximum Height | 4.875 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 9.5 |
| length | 24.25 |
| LTL | N |
| Material | Aluminum |
| Number of Carbs | Three |
| Position | N/A |
| Rear Maximum Height | 5.630 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range | 2500-6500 |
| Series | Dual-Quad/Multi Carb |
| Single Or Dual Plane Type | Dual |
| Usage | Street/Hi-Performance |
| Vehicle Model | Chrysler |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 26.0 |
| width | 16.5 |
