Description

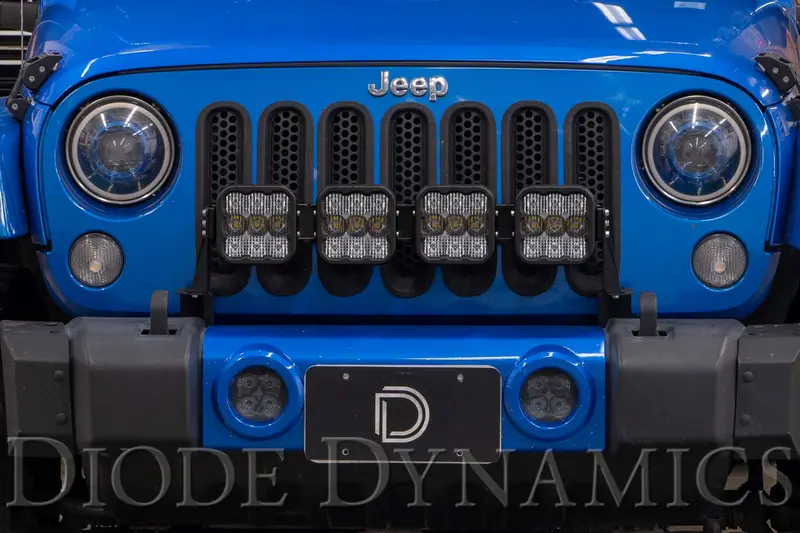

Perfect Fitment. The Grille CrossLink Lightbar Kit compatible with Jeep JK Wrangler 2007-2018 from Diode Dynamics allows you to mount four linked SS5 LED pods on the factory grille. These application-specific brackets were CAD-designed to bolt into place using factory mounting points on the bumper. No cutting or drilling required!
Designed for Performance. Featuring the highest output intensity of any 5-inch LED pod on the market these lamps have been designed for maximum functionality with patented technology and custom-engineered TIR optics all in a durable package.
Selectable Backlight. The Stage Series 5inch LED Pods included in the White kit feature a selectable backlight with eight different color options perfect for an extra styling accent or for more visibility when you’re not using the main beam. Selecting your backlight color is easy – simply alternate the power on and off. There’s no complicated programming with a controller! The SS5’s backlight fully illuminates the TIR optic providing unique accent lighting that you won’t find on other LED pods. NOTE: Due to the yellow lens the Yellow kit is only available with an Amber backlight color.
CrossLink. Our patent-pending CrossLink technology allows you to link up to eight SS5 pods together to create your own lightbar. The single-piece CNC aluminum link provides extreme rigidity but is fully adjustable for both straight and curved configurations.
Features:
- Bolt-on fitment compatible with Jeep JK Wrangler 2007-2018
- Ultra-high intensity with custom-engineered TIR optics
- Selectable backlight color with eight color options
- Torture-tested heavy-duty construction
- Control through factory aux switch bank using the included harness
- Assembled in USA
Included in the box:
- Two (2) Application-specific heavy-duty steel brackets for installation on 2007-2018 Jeep Wrangler
- Four (4) Stage Series 5inch LED Pods
- Three (3) CrossLinks with hardware
- One (1) CrossLink endmount kit
- Three (3) splitter wires
- One (1) OEM auxiliary switch single-output harness
- One (1) heavy-duty single-output harness
- Installation Guide
Specifications:
| brand_logo | https://www.asapnetwork.org/sites/default/files/brands/icons/diode%20ASAP.png |
| color_l | Yellow |
| Connector | Deutsch DT Input |
| height | 12.0 |
| last_update | 2022-11-15 19:10:44 |
| last_update | 2023-06-21 14:42:00 |
| length | 18.0 |
| lens_material | Polycarbonate |
| light_pattern | Combo |
| lumens | 3700 Lumens |
| LUX | 71 200 cd |
| material_l | Aluminum Casting Rubber Gasket |
| material_l | Aluminum Casting, Rubber Gasket |
| Series | SS5 |
| sold_as | Each |
| Universal | Yes |
| vehicle_type | Jeep |
| volts | 9-16V |
| Warranty | 8 Year Warranty |
| waterproof_rating | IP69K Waterproof, High Pressure |
| weight | 24.0 |
| width | 15.0 |
